The digital storage industry can gain a new format capable of joining high performance and extremely reduced dimensions. Chinese manufacturers are preparing a type of SSD the size of an operator chipwhich can be used on portables, tablets, cell phones and other devices, with installation similar to that of a SIM card.
The new model, called Mini SSD by the manufacturer Biwin and “1517” by another supplier, only measures 15 mm x 17 mm x 1,4 mm. This makes it a little larger than a microSD card, but much smaller than the traditional M.2 used in notebooks and PCs.
Despite the size, the performance is high: Up to 3,700 MB/S of Reading e 3,400 MB/s of recordingthanks to the interface PCIe 4×2. The capacity options range from 512 GB to 2 tb.
For comparison, a card MicroSD Express modern reaches about 985 MB/sand a card SD Express conventional size reaches 3,940 MB/s.
Already a state -of -the -art M.2 2280 can reach up to 14,000 MB/s, but in a much larger body.

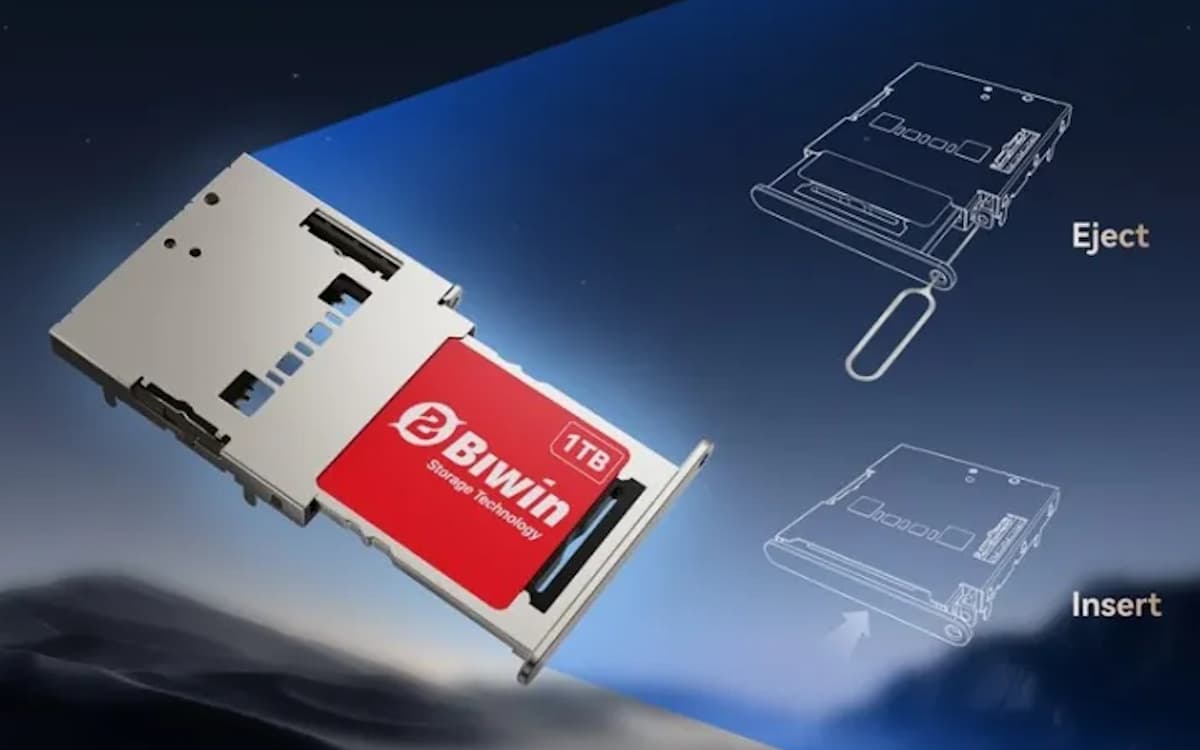

Installation by tray similar to yes card
The mini SSD will have Slot dedicated With an ejector tray and pin, as well as in smartphones. Thus, the design facilitates the full change and dismantling of the device. Biwin says the model offers IP68 water and dust resistancebesides supporting falls of up to three meters.
According to the company, the idea is to create a versatile solution for laptops, tablets, cell phones, cameras and portable consoles.
The goal is to allow the user to broaden or replace storage as ease as it exchanges a phone chip
Biwin
Already present on portable devices
During Chinajoy 2025, two equipment with chip AMD Strix Halo confirmed support to the new SSD: O GPD Win 5a portable console with large capacity battery, and the OneXPlayer Super Xhybrid between tablet and notebook.
Both will have EXCLUSIVE INPUT FOR MINI SSDsignaling that hardware manufacturers begin to bet on format.
Size and Speed Comparison Table
| Type | Length | Width | Height | Theoretical maximum speed |
|---|---|---|---|---|
| Mini SSD | 15 mm | 17 mm | 1,4 mm | 3,700 MB/s |
| MicroSD | 11 mm | 15 mm | 1 mm | 985 MB/s |
| SD | 24 mm | 32 mm | ~2 mm | 3,940 MB/s |
| M.2 2230 | 22 mm | 30 mm | ~2 mm | ~ 8,000 MB/s |
| M.2 2280 | 22 mm | 80 mm | ~2 mm | ~ 14,000 MB/s |
| Nano-SIM | 8,8 mm | 12,3 mm | 0,67 mm | N/A |
| Micro-SIM | 12 mm | 15 mm | 0,76 mm | N/A |
| Mini-size | 15 mm | 25 mm | 0,76 mm | N/A |
Also read:
Expectation and next steps
There is still no information on price or global launch. The format may depend on the adhesion of other manufacturers to consolidate as standard. If this happens, it is likely that the mini SSDs begin to appear in high performance mobile devices In the coming years.
Fonte: GPD (YouTube)
