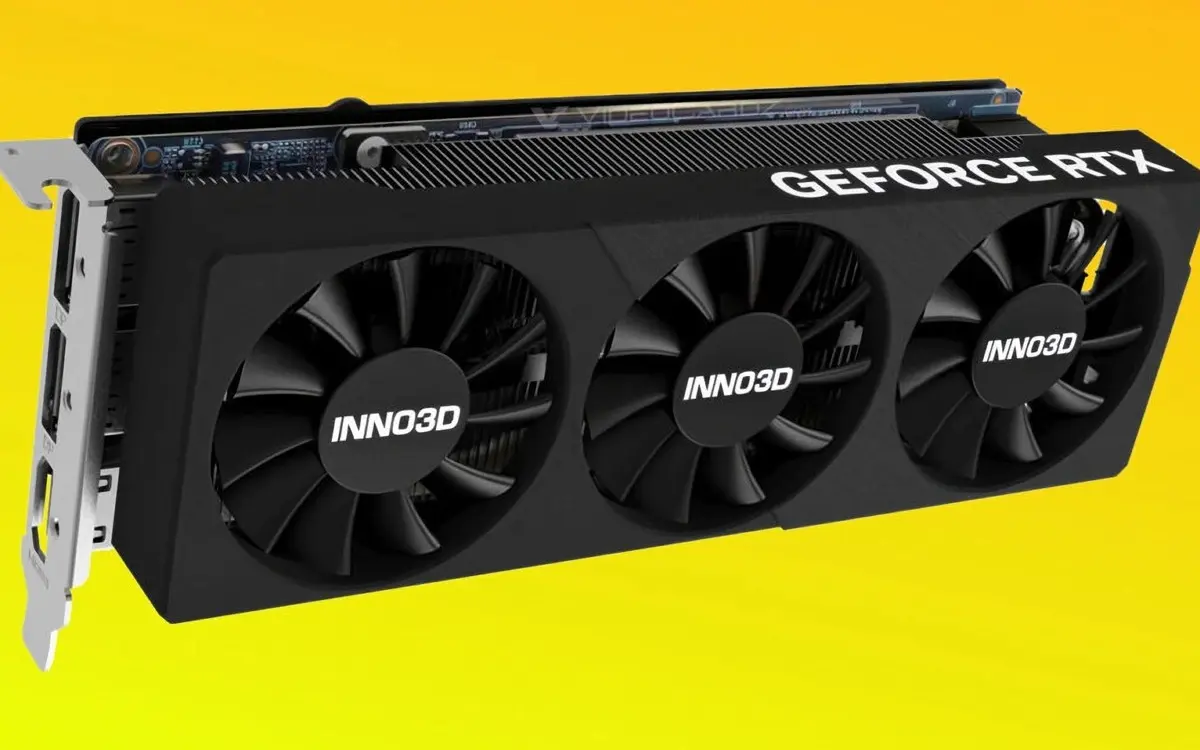

We have another GPU option from the RTX 50 line: Inno3D launches GeForce RTX 5060 Low Profile with three fans!
Designed for computers with limited space, this compact version maintains full power of the RTX 5060 series, offering an alternative for users who need performance in small cases.
Check out the main GeForce RTX 5060 Low Profile technical specifications:
| Category | Specification |
|---|---|
| GPU Model | GB206-250 |
| Architecture | NVIDIA Blackwell |
| Nucleos CUDA | 3840 |
| TMUs | 120 |
| ROPs | 48 |
| Clock base | 2280 MHz |
| Clock boost | 2497 MHz |
| Memory | 8 GB GDDR7 |
| Memory Interface | 128 bits |
| Memory speed | 3,5 Gbps |
| Bandwidth | 448 GB/s |
| Power connector | 1x 8-pin |
| TDP (Consumption) | 145 W |
| Dimensions (W x H x E) | 178 mm × 69 mm × 41 mm |
| Slot | Dual-slot |
| Video outputs | 2x DisplayPort 2.1b, 1x HDMI 2.1b |
Offers of the day
Main features of the RTX 5060 Low Profile
With reduced dimensions of 178 mm, 69mm high e 41mm thickthe plate is approximately 20% smaller in size compared to the Twin X2 conventional model.
The design prioritizes functionality with a black finish and identification using the GeForce RTX and Inno3D logos in white, without the use of RGB lighting.
The refrigeration system employs three 50mm fans each, combined with a heatsink that uses a copper base and three heat pipes that make direct contact with the graphics processor.
That thermal solution was developed to maintain adequate temperatures even with a reduced format.
Blackwell Architecture Technical Specifications
A RTX 5060 Low Profile utiliza a Blackwell architecture from NVIDIA, incorporating 3840 CUDA processing cores.
A RAM video memory is 8 GB of type GDDR7operating on a 128-bit interface with a transfer speed of 448 GB per second. The operating frequency reaches 2497 MHz in boost mode.
Power supply requires an 8-pin connector, with energy consumption total of 145 W. To connect to monitors, the card provides two DisplayPort ports on the version 2.1b and an HDMI 2.1b portsupporting operation with up to three screens at the same time.
read more
Inno3D has not yet included the product on its global website, but the Chinese version of the company’s portal already contains references to the new video card. Expansion to other markets must follow the launch schedule established by the manufacturer.
A RTX 5060 Low Profile representa one of the first options in the low profile card segment with the latest generation of graphics technology.
This type of graphics solution mainly serves enthusiasts of compact Small Form Factor computers (SFF), Home Theater PC (HTPC) and corporate settings where physical space is limited.
And there? What did you think of the news? Share your point of view in this post and continue following Adrenaline!
Source: VideoCardZ
