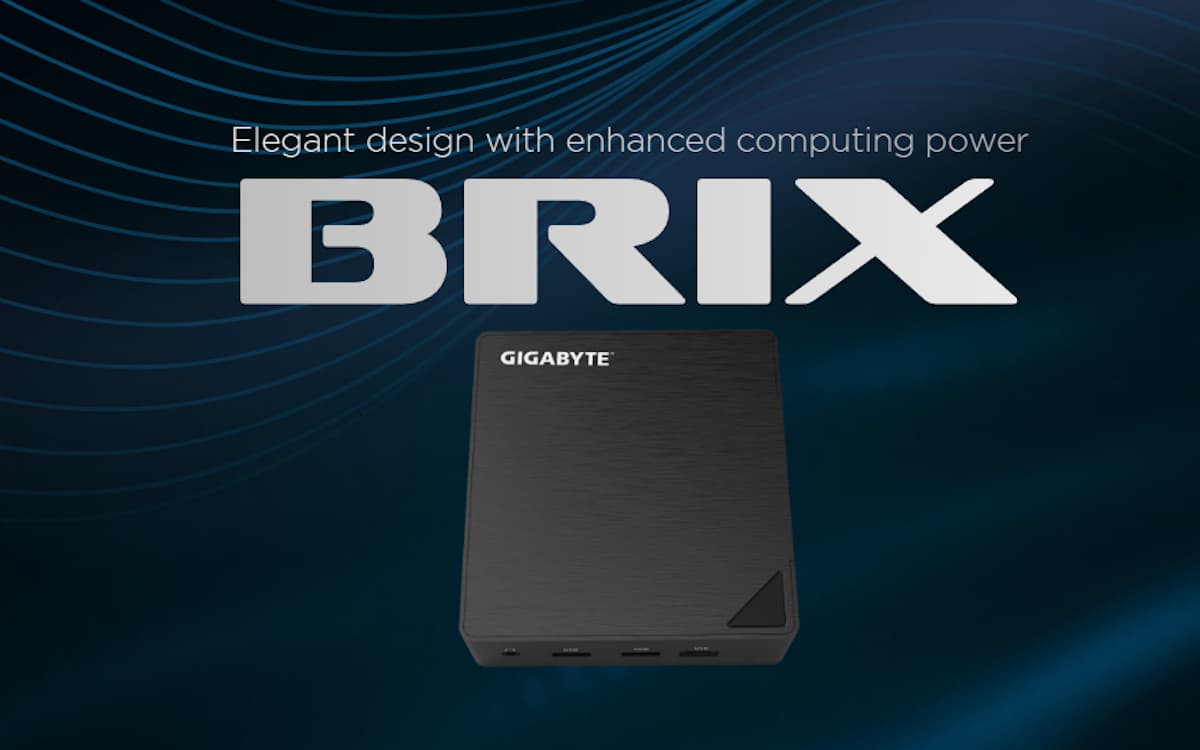

Gigabyte has just announced the launch of New Mini-PCs BRIX GB-BRU7powerful ultra -compacts whose highlight is in the high -level performance union to a Structure with only 0.46 liter.
The models come equipped with the processors Intel Core Ultra 7 255H e Core Ultra 5 225H, Both with hybrid architecture and Intel 4 lithography, optimized for energy efficiency and artificial intelligence.
The big news of this generation is in the use of Intel Core Ultrawhich brings up to 16 cores (6p+8e+2lpe) e 28W base consumption. In addition, the chip has a Npu (Neural Processing Unit) dedicated with 13 topswhich makes it excellent for AI acceleration workloads – especially in edge or corporate applications.
With only 0.46 liters of volume, new models bring desktop performance in an ultra -compact format, focused on thermal efficiency, cutting -edge connectivity and integrated artificial intelligence
Fast and expandable memory up to 96 GB
The system supports two DDR5 so-dimm modules, with Speeds of up to 6400 MHz e maximum capacity of 96 gba remarkable number for ultra -compact devices.
This adds the possibility of high performance even in multitasking and applications that require high bandwidth.
Complete connectivity and multiple monitors support
In the connections, the Mini-PC does not save: it offers two HDMI 2.1 ports with support for 4k@60Hz, two USB-C with displayport 2.1, besides Various USB 3.2 Gen2 and a door RJ45 com Ethernet de 2.5GbE (Intel I226V).
This enables the connection of up to four simultaneous monitors, something rare in this segment.
The system also has slot M.2 para SSDs PCIe Gen5 e Gen4in addition to module M.2 dedicated to Wi-Fi 7 e Bluetooth 5.4 (Intel RTL8922AE).
Intelligent thermal design and flexible assembly
Even with small size, the brix chassis was designed with efficient cooling.
It adopts thermal solution with a single fan, with sufficient dissipation to maintain stability even in continuous use. The food is done by a USB-C PD adapter of 100W, which simplifies integration with modern environments.
Another remarkable point is the Compatibility with 75 × 75 mm VESA supports e 100×100 MM, allowing easy installation on walls, behind monitors or corporate furniture.
Gigabyte’s new brix is ​​the type of equipment that delivers workstation performance in an almost invisible format, ideal for environments where each inch counts
Operating system and robustness environmental
The Gigabyte Brix GB-BRU7-255h comes ready to run Windows 11 64-bit in environments that require uninterrupted operation.
Support Tem Temperature Raises between 0 ° C and 35 ° C in use and –20 ° C to 60 ° C in storage – Characteristics necessary for industrial or corporate applications.
Gigabyte BRIX GB-BRU7-255h technical sheet
| Category | Specifications |
|---|---|
| Model | GB-BRU7-255H |
| Dimensions | 112,6 x 34,4 x 119,4 mm (L x A x P) – Chassi slim |
| Motherboard size | 105 mm x 114,49 mm |
| Processor (CPU) | Intel® Core™ Ultra 7 255H – 16 núcleos (6P + 8E + 2LPE), TDP de 28W |
| Memory | 2 x so-dimm ddr5 / cso-dimm ddr5, up to 96 gb, up to 6400 mhz |
| REDE (LAN) | 2.5GbE LAN (Intel® I226V) |
| Graphics (GPU) | Intel® Arc ™, Intel® XE LPG+ (up to 8 cores) |
| 2 x HDMI 2.1 (3840 x 2160 @60Hz, TMDS, CEC) | |
| 2 x USB Type-C ALT (DisplayPort v2.1) | |
| Audio | HD Audio (Realtek Audio) |
| Expansion slots | 1 x M.2 M Key 2280 PCIe Gen5x4 |
| 1 x M.2 M Key 2280 PCIe Gen4x4 + SATA | |
| 1 x M.2 E Key 2230 Wi-Fi & BT (Intel® RTL8922AE – Wi-Fi 7 + BT 5.4) | |
| Front doors (i/o) | 1 x Conector de headset |
| 2 x USB 3.2 Gen2 | |
| 1 x USB-C 3.2 Gen2 | |
| 1 x Power button with LED | |
| Rear doors (i/o) | 2 x HDMI 2.1 (TMDS & CEC) |
| 1 x USB-C 3.2 (ALT) | |
| 1 x USB-C 3.2 (PD IN) | |
| 1 x USB 3.2 Gen2 | |
| 1 x USB 2.0 | |
| 1 x RJ45 (2.5GbE) | |
| 1 x Slot para trava Kensington | |
| Power supply | 100–240V, 100W PD USB adapter (USB-C input) |
| VESA assembly | Compatible with VESA 75 x 75 mm and 100 x 100 mm |
| Operating system | Windows Support 11 64-bit |
| Operating environment | Operating Temperature: 0 ° C to 35 ° C |
| Storage temperature: -20 ° C to 60 ° C | |
| AI unit (NPU) | Low consumption AI engine with 13 tops |
Also read:
A mini-PC prepared for tomorrow
Combining robust performance, embedded artificial intelligence, advanced graphics support and excellent connectivity, Gigabyte Brix GB-BRU7-255h is another versatile solution for professionals, companies and integrators who need power in reduced spaces.
It can be said that it goes beyond a simple barebone: it is a compact, efficient and ready platform to meet both the requirements of the present and the opportunities of the near future.
With its ability to expand and focus on AI, BRIX reaffirms Gigabyte’s proposal to deliver state -of -the -art technology solutions without compromising size, consumption or functionality.
Fonte: GIGABYTE
