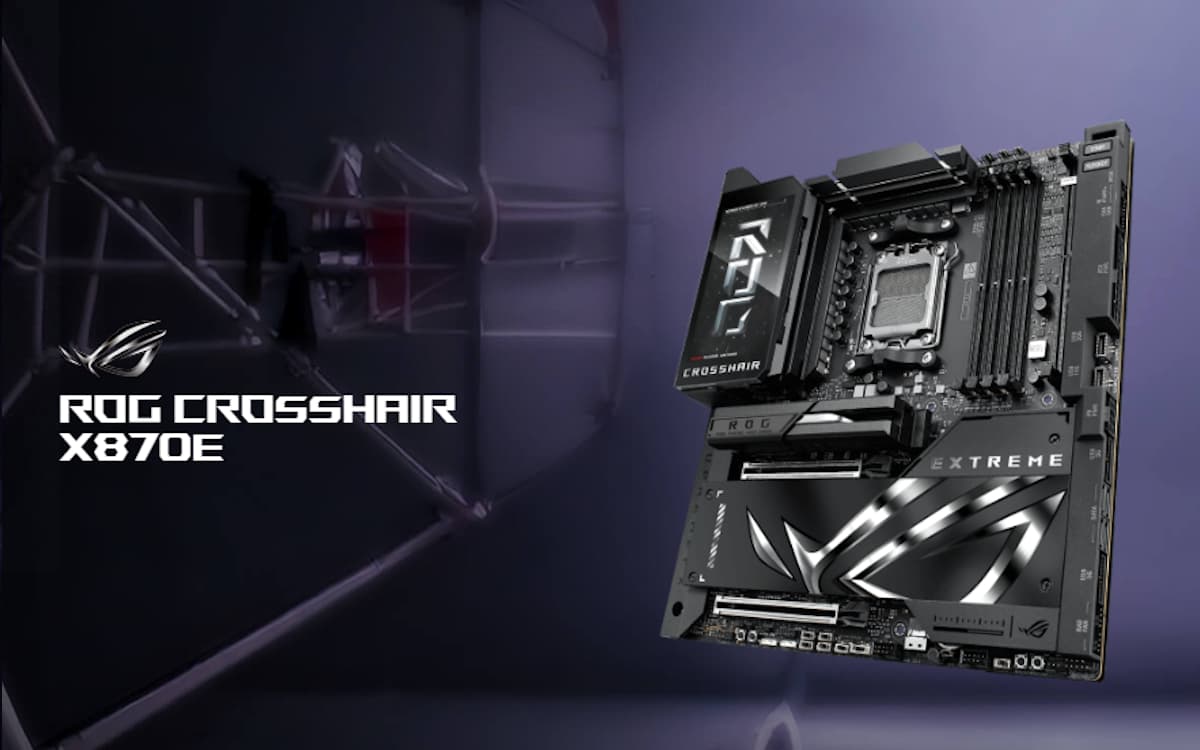

ASUS officially revealed its new Flagship motherboard for AMD processors: a ROG Crosshair X870E Extremefocused on enthusiastic public and professional overclochker. With an aggressive design, premium construction and price that goes beyond US $ 1400 (approximately R $ 8,200)the model delivers the most advanced on the AM5 platform.
The announcement was made during an event ROG held in China, where price, specifications and release forecast were also confirmed to April 2025.
Shaped E-ATXthe X870e Extreme comes with a predominantly black look and silver details. The model uses a clean layout, reinforced by a metal backplate e Angled Covers that integrate heat dissipping and aesthetic protections.
Rog identity appears in highlights as the Illuminated logo and the “Extreme” inscription in high relief.
In the heart of the plate is a Power System 20+2+2 phases (110a)one of the most powerful on the market. Fueled by Two 8 -pin EPS connectorsThis system ensures stable energy even in the most demanding overclocking scenarios.
Os VRMS are cooled by huge aluminum blocks interconnected by Heatpipesproviding thermal efficiency in prolonged sessions of heavy use.
Ultra -rarefront DDR5 support and M.2 tailored
The plate has Four slots ddr5 dimmwith support for up to 256 GB and speeds higher than 8200 MT/s – Ideal performance for AI workloads, rendering or advanced multitasking.
An exclusive differential is the ROG Q-DIMM.2an additional slot that allows you to connect a Adapting Plate (AIC) with two ssds M.2, adding to the three existing physical slotstotaling Five units m.2 available.
The main slot M.2 comes with a 3D vapor chamberthermal solution designed for SSDs Gen 5, which warm significantly more than the gen 4. This slot also has EZ DELEASE SYSTEMwhich facilitates the exchange of tools without tools.
The other slots are under a roof with extended dissipatorconnected to the chipset (SHP), reinforcing passive dissipation.
ASUS delivers a plan designed to the smallest detail – from electrical stability to air flow, through the DIY experience. A true enthusiastic dream
Integrated LCD, overclocking and advanced debug features
Another great highlight of the X870e Extreme is yours 5 ”LCD embedded on the rear panelwhich may display system data, animations or even customizations of the user. Ideal for offices with side window.
On the opposite side of the plate, the buttons are FlexKey, Power On/Off, DEBUG LEDplus connectors and switches for fine adjustments. You can configure overclock, reset CMOS profiles, change BIOS functions, among others.
Connectivity: 10GBE, Wi-Fi 7, USB 40Gbps and more
In the rear panel, the plate comes equipped with a true connectivity center:
- 4x USB-Cbeing 2x 10 Gbps e 2x 40 Gbps (Thunderbolt/USB4)
- Various USB-A ports Additional (Gen 2 and 3.2)
- 10GBE + 5GBE NETWORK
- Wi-Fi 7 + Bluetooth
- HDMI + HD Audio 7.1 Channels
- Flashback and Clear Cmos
On the front, there are connectors for USB 20g, 10g and two 5gin addition to support to fast loading panels and embedded sensors.
Sustainability and Personalization
Asus also positions itself in relation to the environment in the Rog line, with production practices and more sustainable materials. The plate is still compatible with the system Aura Sync RGBallowing complete customization of setup, from PCB to peripherals.
ASUS ROG CROSSHAIR X870E Extreme (AM5)
| Component | Details |
|---|---|
| Model | ROG Crosshair X870E Extreme |
| Socket / chipset | AMD Socket AM5 / Chipset X870E |
| Supported CPU | AMD Ryzen Series 9000 /8000 /7000 (except 7000g) |
| Format | E-ATX (30,5 cm x 27,7 cm) |
Memory
| Details | Description |
|---|---|
| Slots | 4x DDR5 DIMM |
| Maximum capacity | Up to 256 GB |
| Frequency | DDR5 up to 8200+ MHz (OC) |
| Support | Ecc (Apenas Udimm) / Non-EcC / XMP / BEST 3 |
Integrated Graphics (Via CPU)
| Video output | 1x HDMI 2.1 (máx. 4K @ 60Hz) |
|---|
Expansion slots
| Description | Quantity / type |
|---|---|
| PCIe 5.0 x16 | 2x (modo x16 ou x8/x8) |
| PCIe 4.0 x4 | 1x |
Storage
| M.2 Slots | 5x totais: 1x Gen5 + 2x Gen4 + 2x via ROG DIMM.2 |
|---|---|
| SATA | 6x Portas SATA 6GB/s |
| ROG DIMM.2 | Expansor included, supports 2 SSDs M.2 additional |
| SSD Refrigeration | Main Slot M.2 With 3D Steam Chamber |
Network connectivity
| Type | Details |
|---|---|
| Ethernet 1 | Intel 10GbE |
| Ethernet 2 | Marvell AQtion 5GbE |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4 |
USB (rear panel)
| Doors | Quantity / type |
|---|---|
| USB4 Type-C | 2x (up to 40 Gbps) |
| USB 3.2 Gen2 Type-C | 2x |
| USB 3.2 Gen2 Type-A | 6x |
| USB 2.0 | 2x |
USB (internal)
| Available Headers | |
|---|---|
| USB 3.2 Gen2x2 | 1x (20 Gbps) |
| USB 3.2 Gen1 | 2x headers (4 portas) |
| USB 2.0 | 2x headers (4 portas) |
Audio
| Codec | ROG SupremeFX 7.1 (ALC4082) + ESS ES9218PQ DAC |
|---|---|
| Funds | Output S/PDIF, Jack Self Detection, Multicanal HD Audio Support |
Resources for Overclock E DIY
| Duties | |
|---|---|
| FlexKey | Customizable button |
| Q-Code / DEBUG LED | Real -time diagnosis |
| LN2 Mode / Retry Button | Optimizations for extreme overclock |
| Safe Boot / BIOS Switch | Security mode, exchange between BIOS |
| Power / Reset button | Physical, dedicated to the plate |
Integrated LCD panel
| Display | 5 ″ OLED screen integrated into the rear panel |
|---|---|
| Duties | Animations, system monitoring, customization via Armoury Crate |
lumination and personalization
| RGB | Asus Aura Sync compatible with Headers ARGB and RGB |
|---|---|
| Software | Armoury Crate |
Box content
| Included Accessories | |
|---|---|
| 1x ROG DIMM.2 | (com 2 slots M.2 Gen4) |
| 4x Cabos SATA | |
| 1x 1x Wi-Fi | |
| 1x Cabo DisplayPort | (for USB-C) |
| 1x thermocouple sensor | |
| 1x Suporte Q-connector | |
| 1x ROG Adhesive Plate | |
| Others | Manual, m.2 screws, rog accessories package |
Also read:
Price and availability
A ROG Crosshair X870E Extreme will initially be launched in the Chinese market with suggested price of ¥9999equivalent to approximately US$ 1400 ou R$ 8.200 (current quotation, without taxes). The model should reach other regions in the following weeks, focusing on specialized resellers and high end stores.
Fonte: ASUS
